Radikal Bikers (prototype)

Radikal Bikers (prototype)

Notas de la versión de la ROM

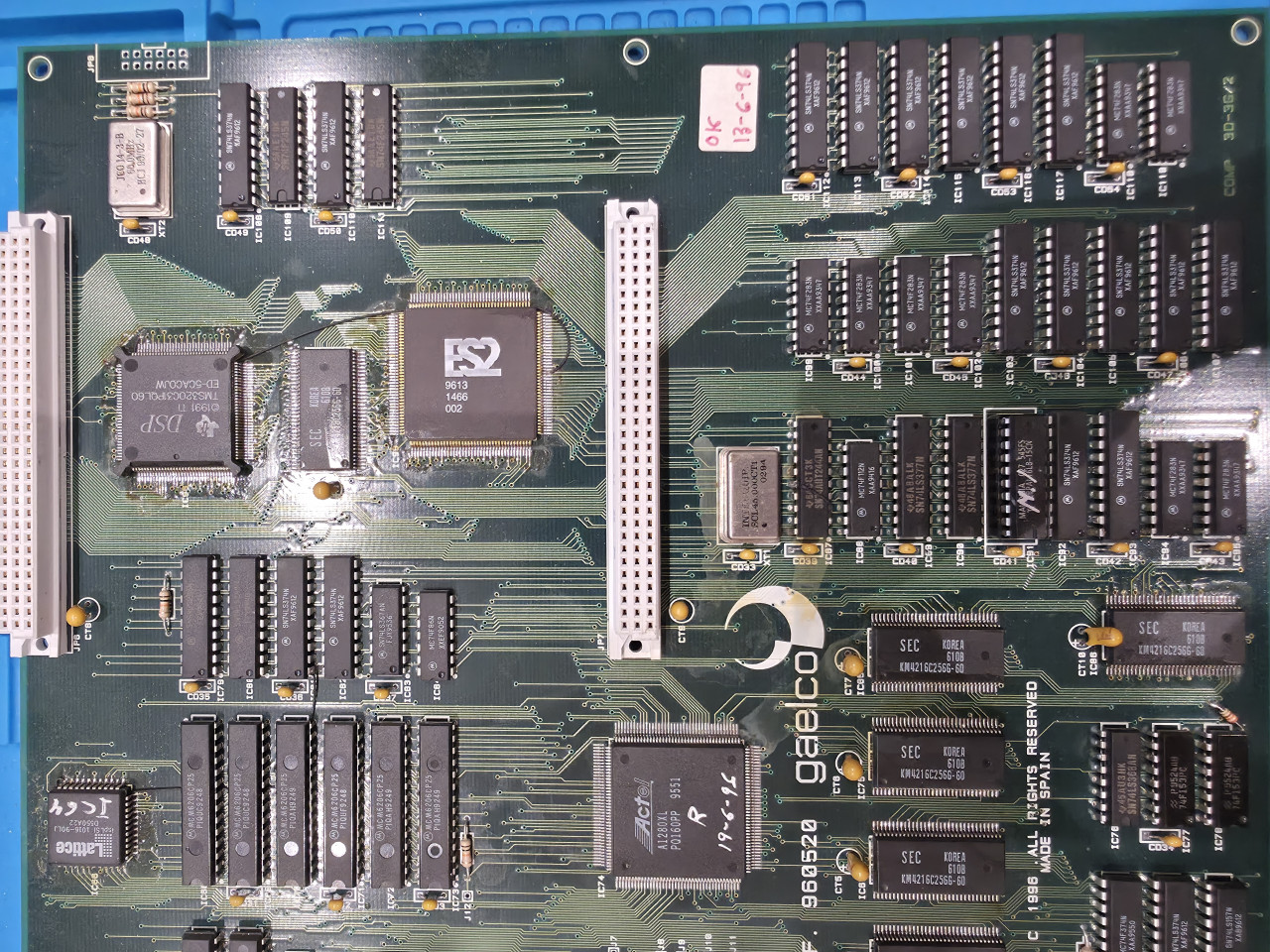

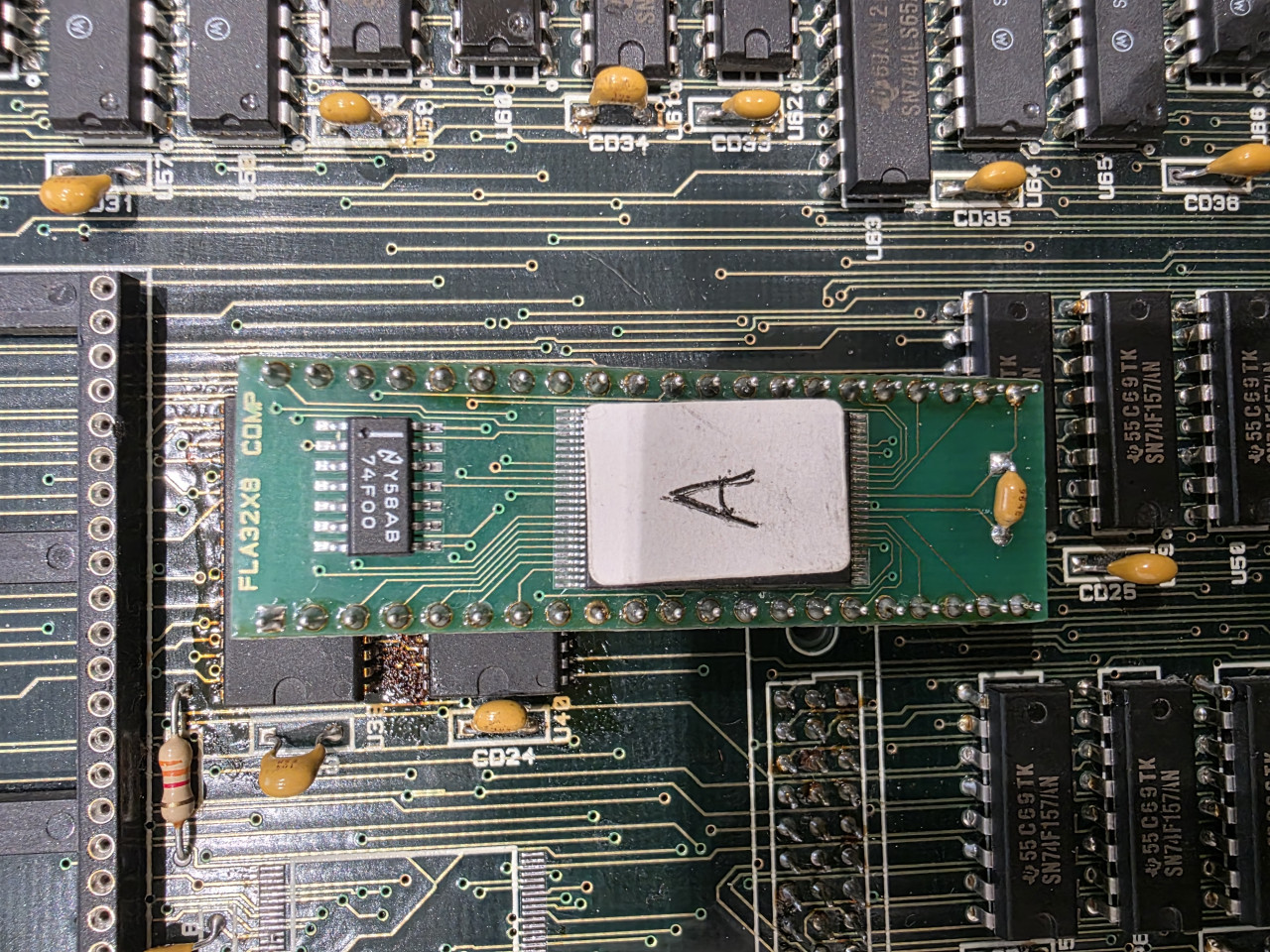

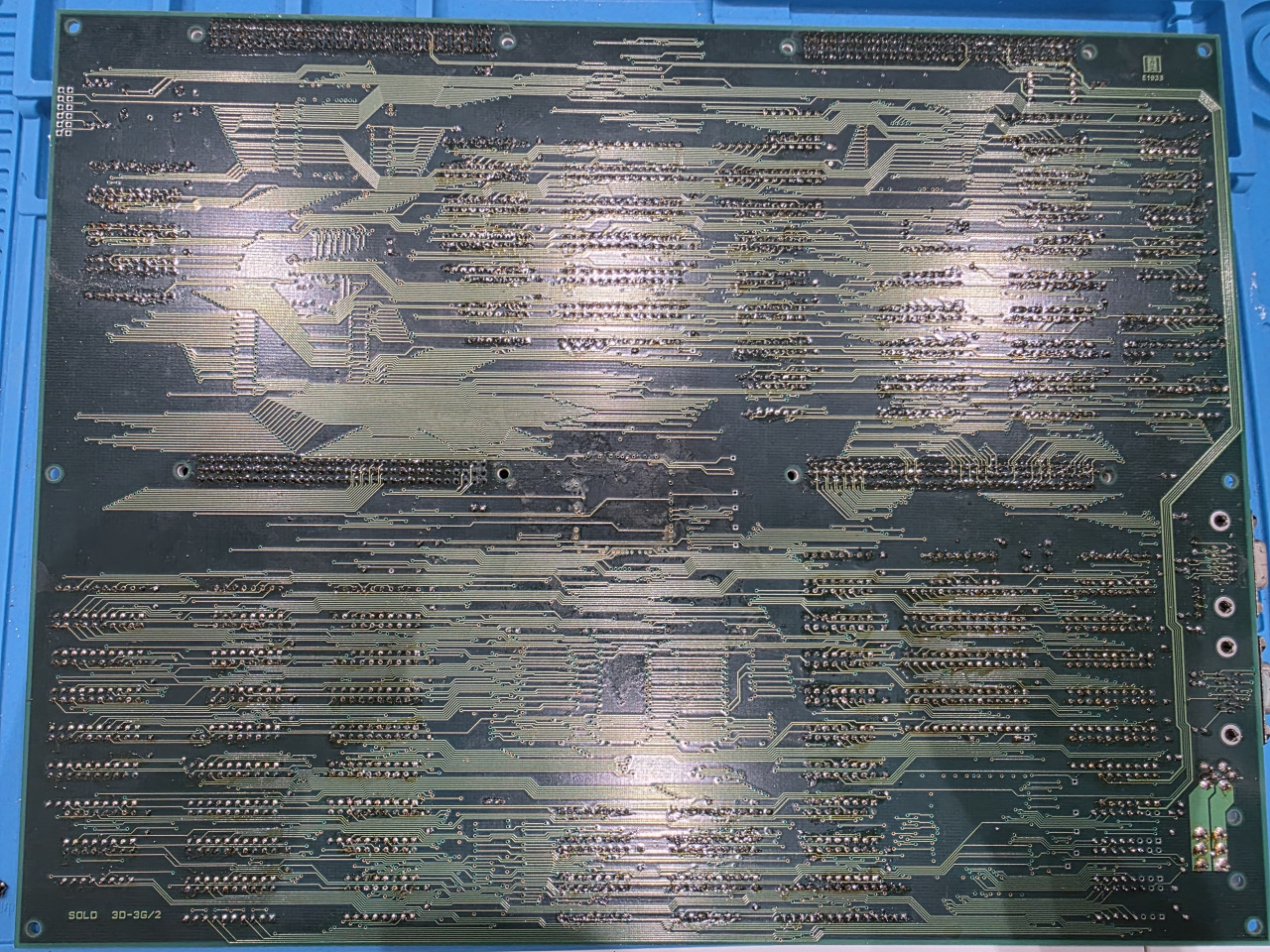

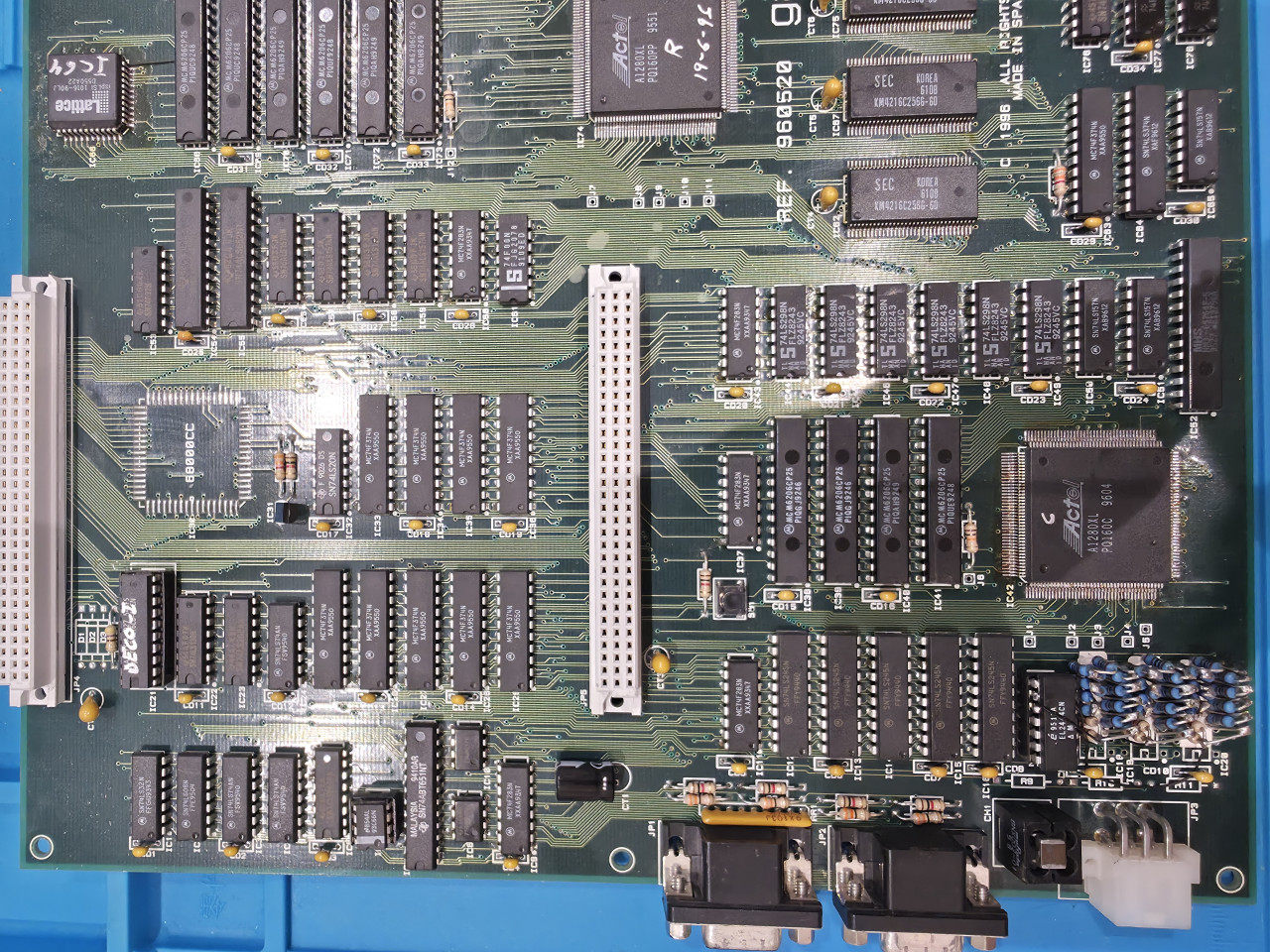

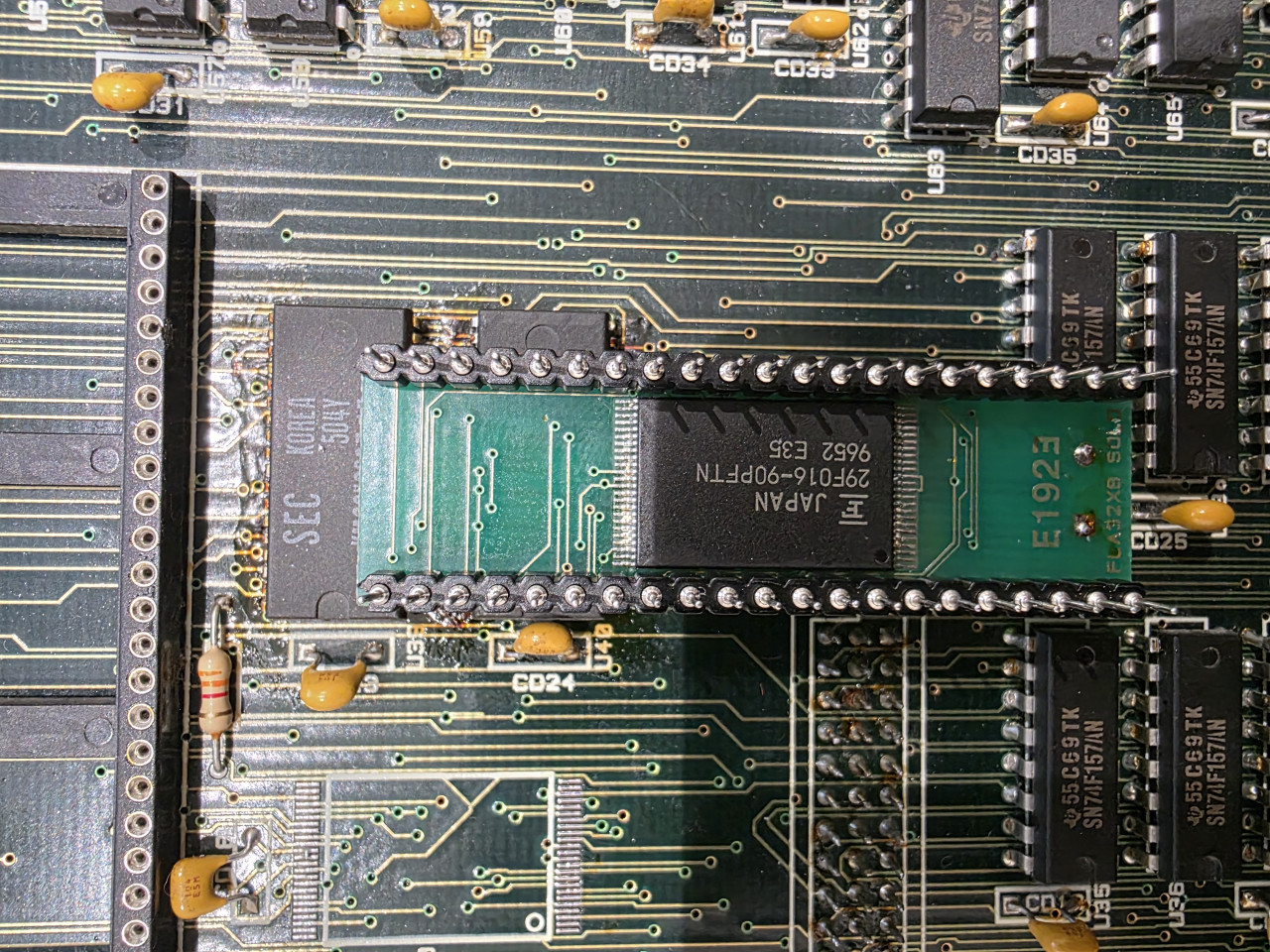

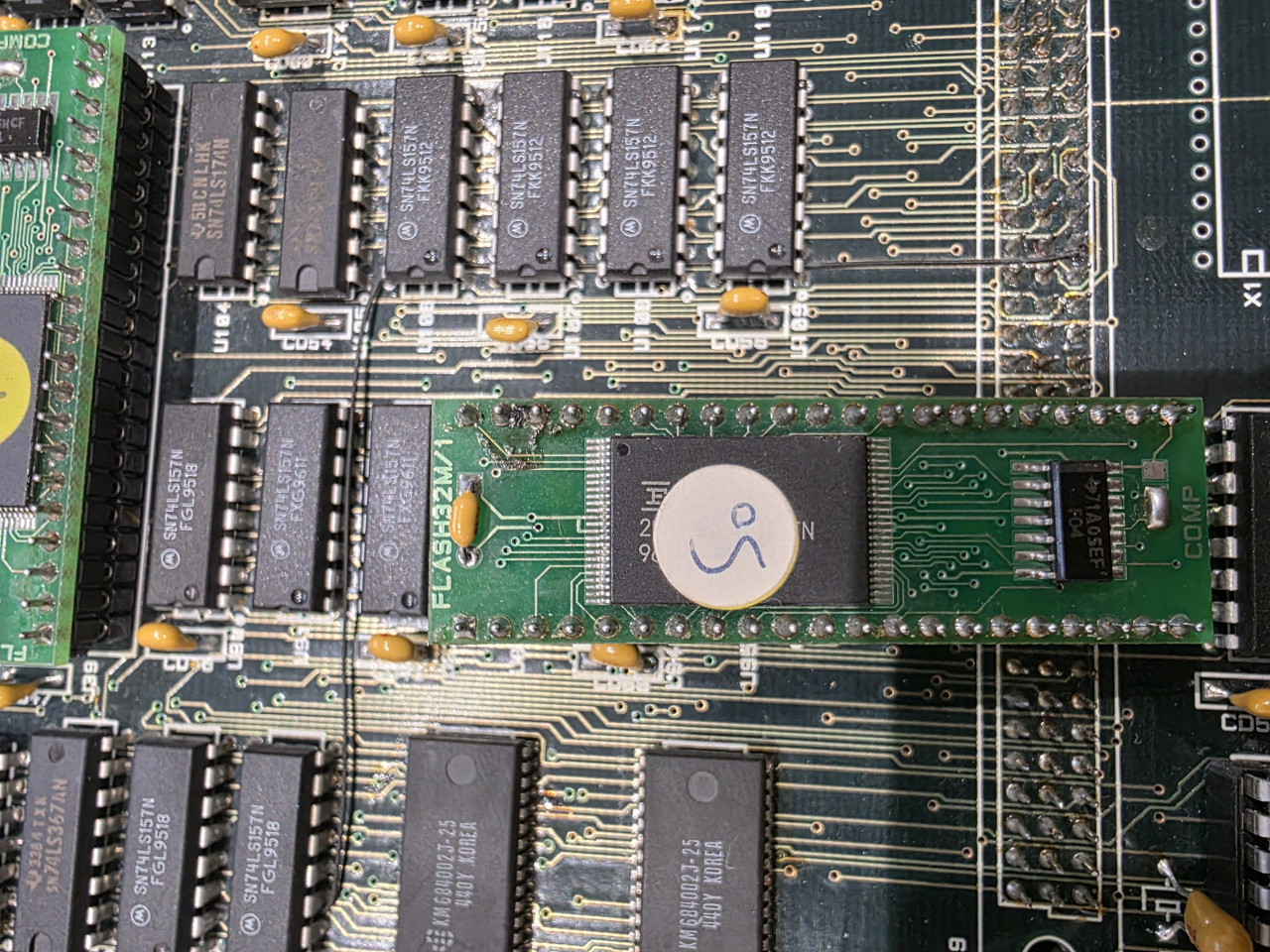

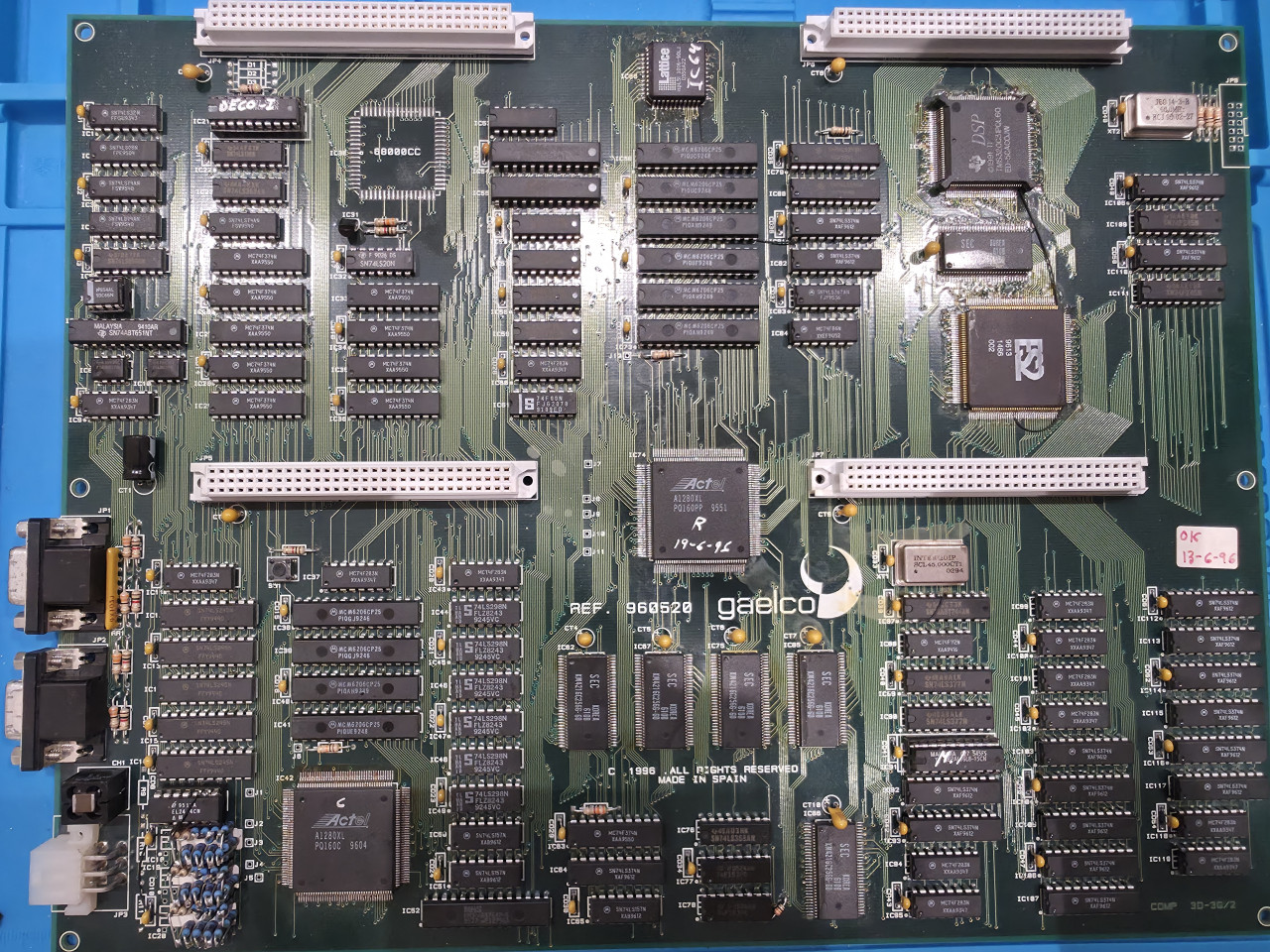

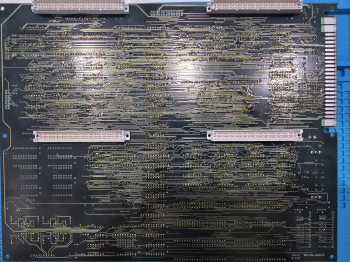

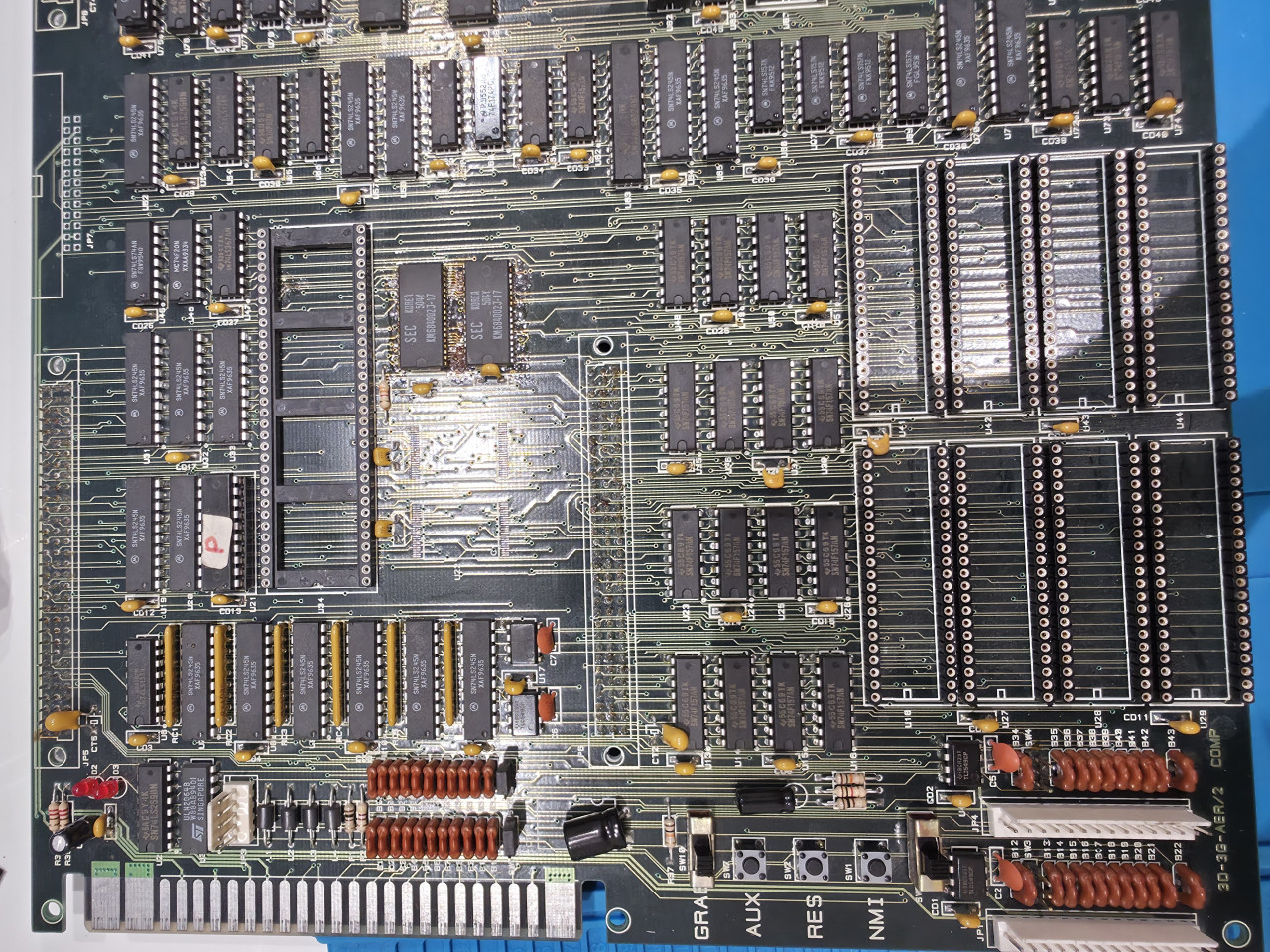

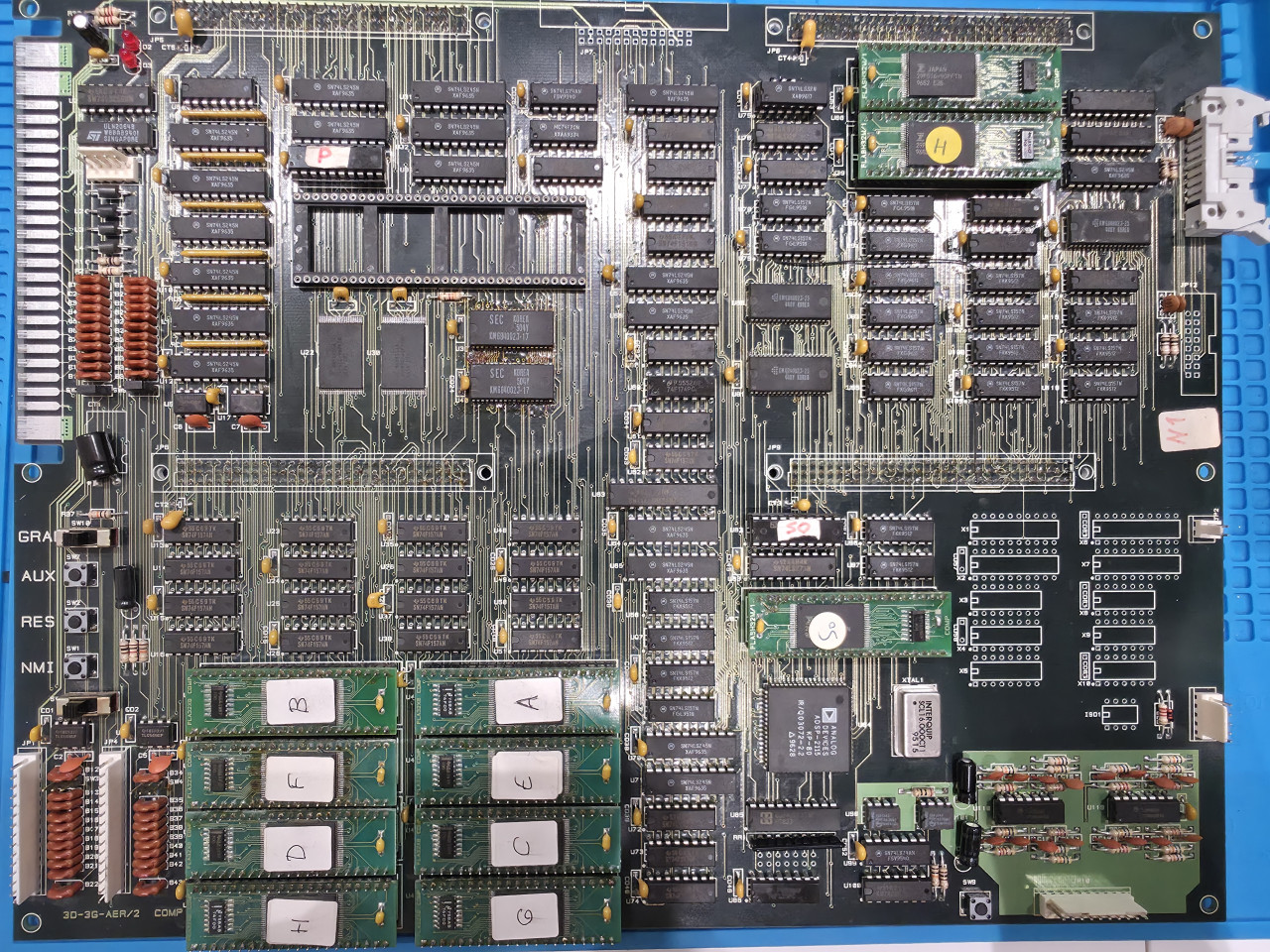

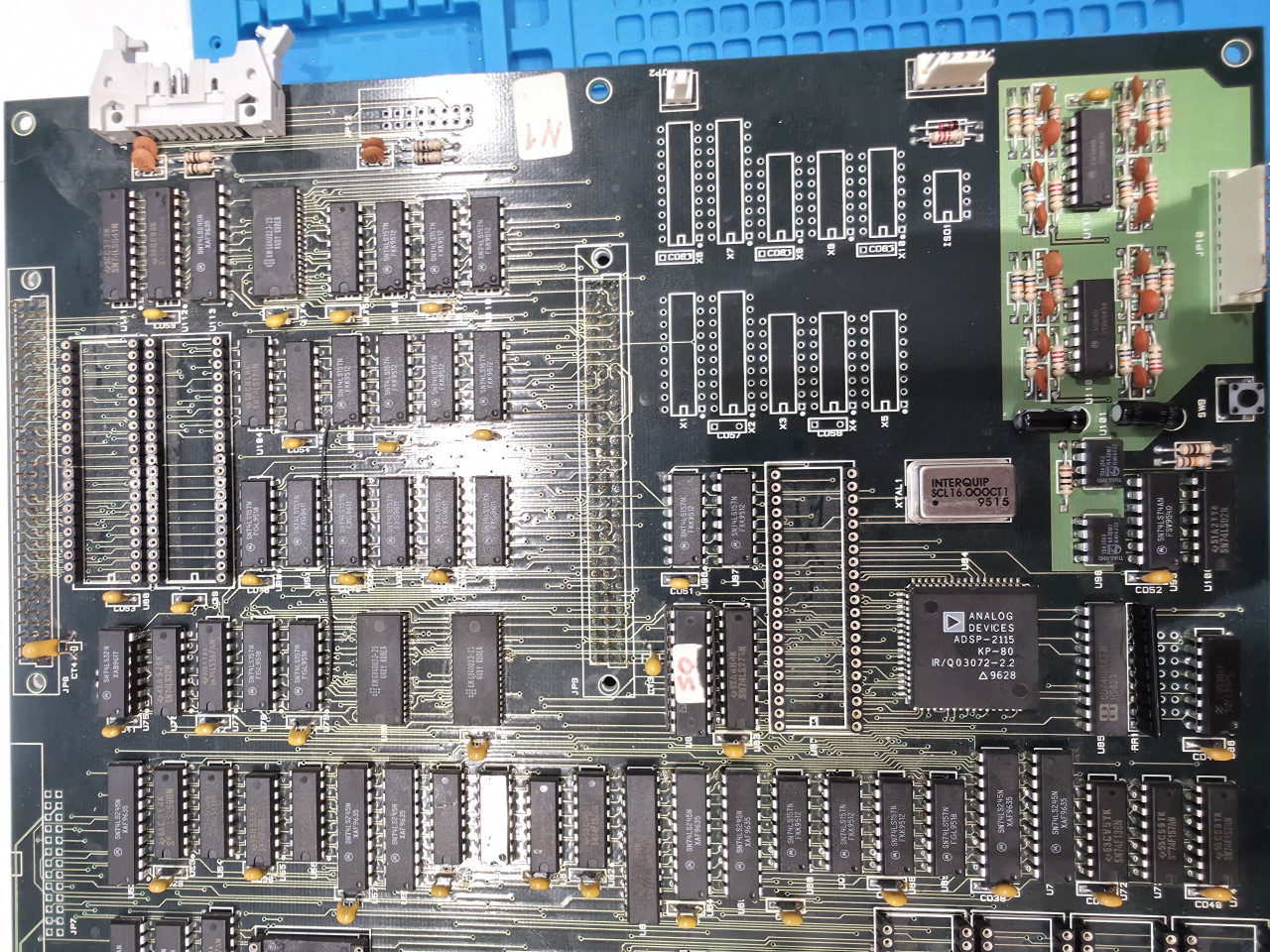

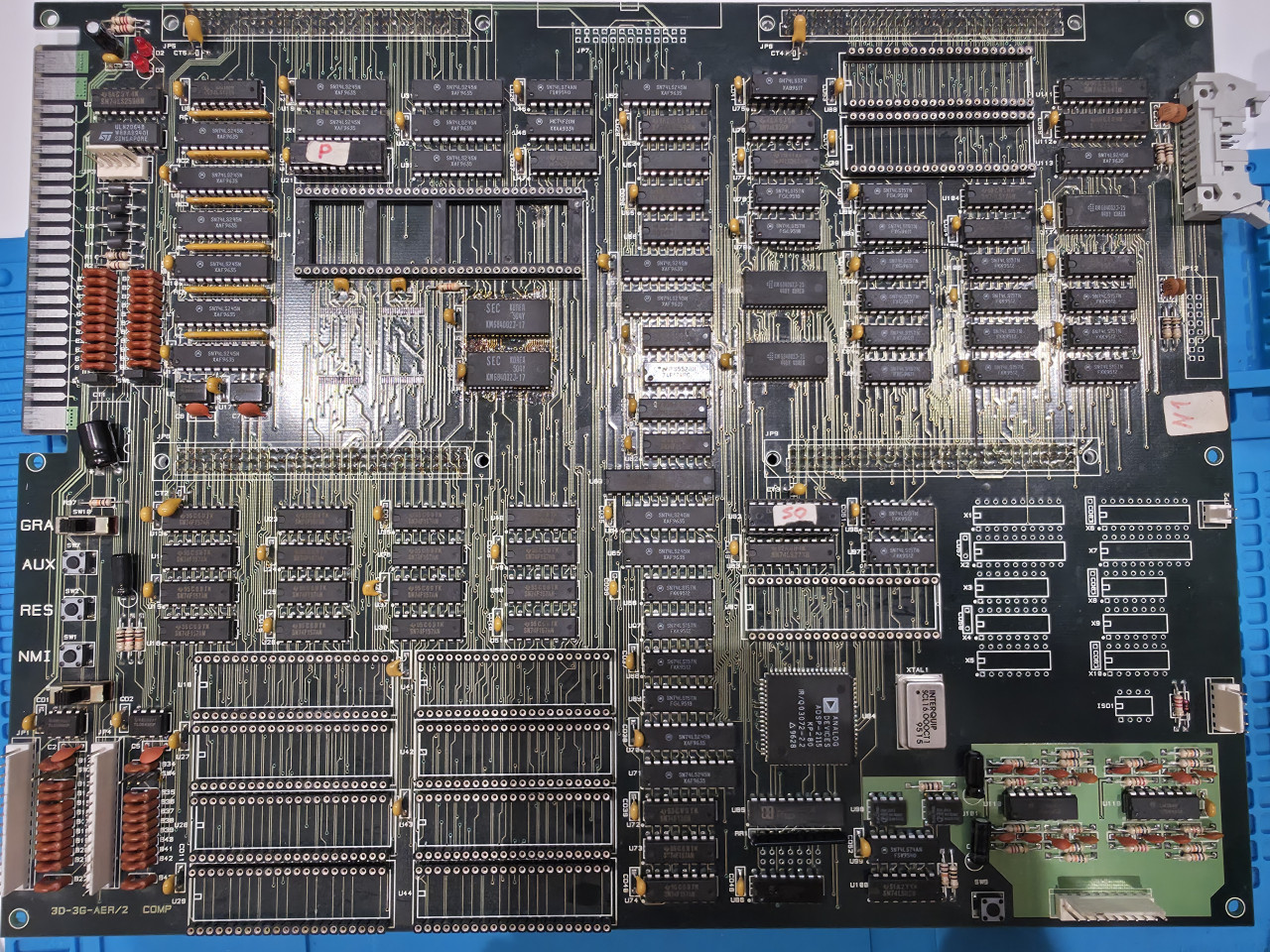

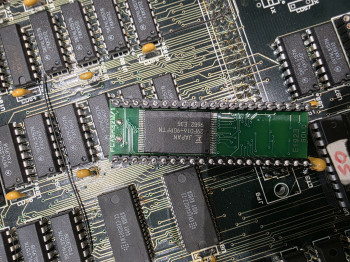

Development PCB, silkscreened "3D-3G-AER/2". All ROMs but the two program ROMs were on custom DIP42 PCBs with solderded flash chips: - FLA32X8 dip modules are equivalent to 27c322 eproms but in “8 bit mode” (such EPROM doesnt exist), the module has A0 in place of D15. These modules use two 29F016 flash chips. - FLASH32M/1 dip modules are equivalent to 27c322 (full 16 bit output), pin 11 chip enable is active HIGH (instead of active LOW). These modules use two 29F016 flash chips.

Colaboradores: Josep Quingles (Gaelco), Gaelco, Arcadehacker.
